Overview
Intel 10nm Agilex 7 Series FPGA based embedded SOM (eSOM™) module for embedded, edge processing, wireless communication and networking centric designs. Up to 1.2Tbps high speed transceivers bandwidth supporting up to 58Gbps PAM4 and x16 PCIe Gen 4 interfaces. Integrated quad-core 64-bit A53 ARM processor complex with network, control and storage peripherals.

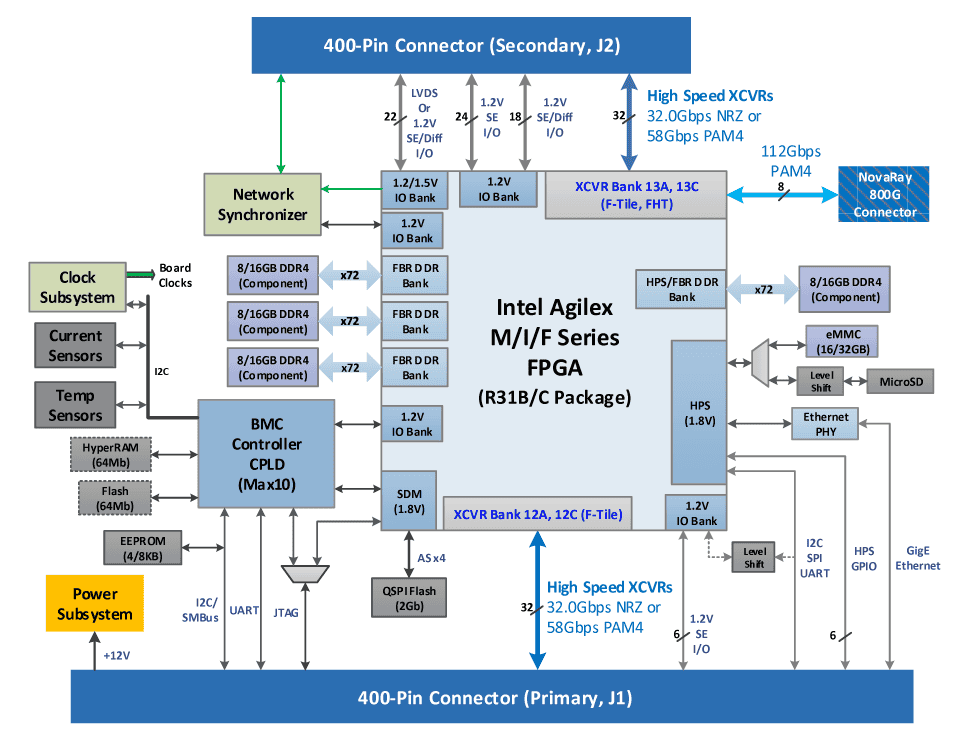

Features
- 120mm x 140mm, 4.72” x 5.51” form factor embedded System on Module (eSOM) with Intel Agilex™ 7, I, F and M Series FPGAs
- Supports 4x F-Tile 027/022 and 041 density devices in R31B/R31C package
- Drop-in compatible with eSOM7-2F module
- Designed for embedded applications including high speed signal processing, wireless nodes with high performance RF XVRs and networking
- Eliminates the complexity of the FPGA, DDR4, power, management subsystem design and complex layout from the product development cycle
- Two 400-pin high performance connectors with Serdes and IOs. 5mm and 10mm stacked height options.
- Paired with COTS and custom carriers (Hitek or customer developed) for a quick time to market solutions
- Option for ARM A53 processing complex (HPS) with 8/16GB 73-bit component DDR4 memory, 32GB eMMC and µSD card, GiGE Ethernet, SPI, I2C and UART interfaces
- Total of four 16/8GB 72-bit (64 Bit Data + 8 Bit ECC) component DDR4 memory. Board layout for 3200MT/s with -1 core speed parts. Only x40 (32 Bit Data + 8 Bit ECC) for M-Series FPGAs SKU.
- 2GB SDM QSPI for FPGA image
- Module connectors
- Primary 400-Pin Connector (J1)
- F-Tile based Serdes interface; 64 NRZ (32Gbps) or 24 PAM4 (58.125Gbps) transceivers
- HPS Interfaces: Ethernet (1000Base-T/MDI), UART, I2C, SPI and extra GPIO or extra UART/I2C/SPI
- BMC Interfaces: UART, I2C, board control I/O and telemetry
- Single +12V power input the module
- Secondary 400-Pin Connector (J2)
- F-Tile based Serdes interface; 64 NRZ (32Gbps) or 24 PAM4 (58.125Gbps) transceivers
- Fabric side true-differential (LVDS), 1.2V differential, 1.2V single-ended GPIO for control, interface and clock management
- On board NovaRay connector with 8x 112Gbps FHT serdes lanes pinned for Samtec 800Gbps Flyover QSFP-DD interface
- Integrated Skyworks Si5518 network synchronizer for PTP/1588 and SyncE support
- Debug support: FPGA JTAG access, console access to HPS, UART and I2C interfaces to BMC FPGA, extensive temperature and voltage sensors for board telemetry
- Up to 200A core rail supply using multi-phase controller and DrMOS power stages
- Extensive firmware and software support packages
- Complete Linux FPGA support package
- Comprehensive APIs for board management
